Rubber expansion joints

The role of the expansion joint is to protect the installations from vibrations and expansions that the pipework could undergo. The expansion joints allow lateral, axial and limited angular movements. The diversity of elastomers lets it respond to all kinds of applications: water, air, abrasive products, and certain acids. However, beware, they aren’t meant for correcting misalignments in the pipework.

Rubber expansion joints

DI7242-EP

Rubber expansion join with stainless steel swivel flange

Rubber expansion join with stainless steel swivel flange Fiche Technique
Body Material

EPDM reinforcement: nylon tyre cord with steel reinforced wire

pn (End)

PN10/16

End

Loose Flanges

DI7240A

EPDM Flanged expansion joint

EPDM Flanged expansion joint
Body Material

EPDM ACS

pn (End)

PN10/16

End

Loose Flanges

DI7140A

Female BSP expansion joint

Female BSP expansion joint Fiche Technique
Body Material

EPDM ACS

pn (End)

PN16

End

BSP Female

DI7140N

Female BSP expansion joint

Female BSP expansion joint Fiche Technique Fichier BIM .RFA
Body material

EPDM

PN (End)

PN16

End

BSP FEMALE

DI724016-BUA

ACS flanged expansion joint – PN16

ACS flanged expansion joint – PN16 Fiche Technique
Body material

BUTYL

PN (End)

PN16

End

LOOSE FLANGES

DI7240N

EPDM Flanged expansion joint

EPDM Flanged expansion joint Fiche Technique Fichier BIM .RFA
Body material

EPDM

PN (End)

PN10

End

LOOSE FLANGES

DI724016N

EPDM Flanged expansion joint – PN16

EPDM Flanged expansion joint – PN16 Fiche Technique Fichier BIM .RFA
Body material

EPDM

PN (End)

PN16

End

LOOSE FLANGES

DI7241NTIRANT

Length limiters for expansion joint DI7240N

Length limiters for expansion joint DI7240N Fiche Technique
Body material

GALVANIZED STEEL

PN (End)

PN10/16

DI7241NTIRANT16

Length limiters for expansion joint DI7240N – PN16

Length limiters for expansion joint DI7240N – PN16 Fiche Technique
Body material

GALVANIZED STEEL

PN (End)

PN16

DI724116N

EPDM Flanged expansion joint PN16 with tie rods

EPDM Flanged expansion joint PN16 with tie rods Fiche Technique Fichier BIM .RFA
Body material

EPDM

PN (End)

PN16

End

LOOSE FLANGES

DI7240-BUA

ACS flanged expansion joint

ACS flanged expansion joint Fiche Technique
Body material

BUTYL

PN (End)

PN10/16

End

LOOSE FLANGES

DI7240-EA

ACS flanged expansion joint – PN16

ACS flanged expansion joint – PN16 Fiche Technique
Body material

EPDM

PN (End)

PN16

End

LOOSE FLANGES

DI7200-EA

ACS flanged expansion joint – PN10

ACS flanged expansion joint – PN10 Fiche Technique
Body material

EPDM

PN (End)

PN10

End

LOOSE FLANGES

DI7240NI

NBR flanged expansion joint

NBR flanged expansion joint Fiche Technique
Body material

NBR

PN (End)

PN10

End

LOOSE FLANGES

DI7240NIL130

NBR flanged expansion joint – 130 mm length

NBR flanged expansion joint – 130 mm length Fiche Technique
Body material

NBR

PN (End)

PN10

End

LOOSE FLANGES

DI7242NL130

EPDM flanged expansion joint – 130 mm length

EPDM flanged expansion joint – 130 mm length Fiche Technique
Body material

EPDM

PN (End)

PN10

End

LOOSE FLANGES

DI7251N

EPDM flanged expansion joint with length limiters PN25

EPDM flanged expansion joint with length limiters PN25 Fiche Technique Fichier BIM .RFA
Body material

EPDM

PN (End)

PN25

End

LOOSE FLANGES

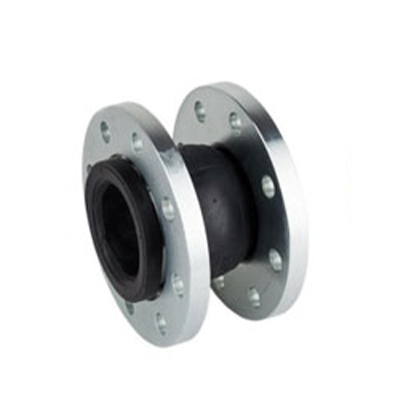

DI7200A

ACS flanged expansion joint – ASA 150

ACS flanged expansion joint – ASA 150 Fiche Technique
Body material

EPDM

PN (End)

ASA 150

End

LOOSE FLANGES
