Ductile iron

Ductile iron

VG4400-02NI

Ductile iron knife gate valve lever operating

Ductile iron knife gate valve lever operating Technical sheet 3D
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

LEVER

VG4400-00NI

Ductile iron rising-stem knife gate valve with handwheel

Ductile iron rising-stem knife gate valve with handwheel Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

RISING STEM HANDWHEEL

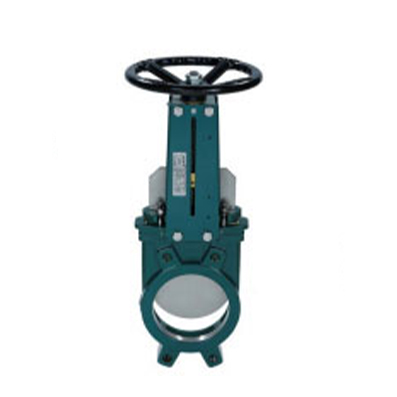

VG4400-001NI

Ductile iron non-rising stem knife gate valve with handwheel

Ductile iron non-rising stem knife gate valve with handwheel Technical sheet 3D
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

NON-RISING STEM HANDWHEEL

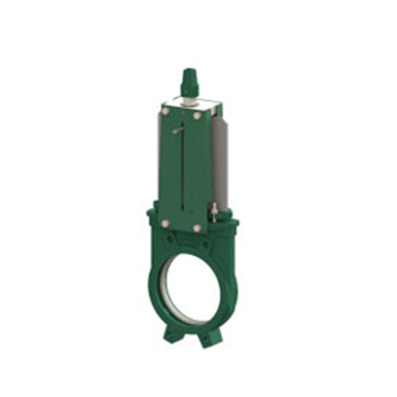

VG4400-051NI

Ductile iron non-rising stem knife gate valve with square operating

Ductile iron non-rising stem knife gate valve with square operating Technical sheet 3D
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

NON-RISING STEM OPERATING SQUARE

VG4400-03NI

Ductile iron knife gate valve with double-acting pneumatic actuator

Ductile iron knife gate valve with double-acting pneumatic actuator Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

DOUBLE-ACTING PNEUMATIC ACTUATOR

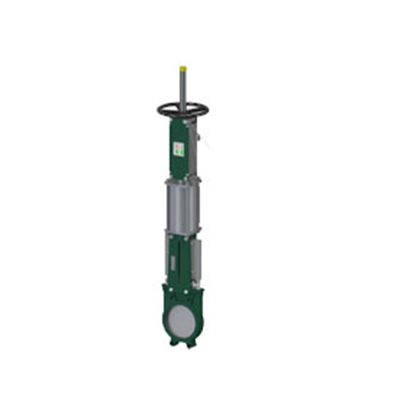

VG4400-031NI

Ductile iron knife gate valve with double-acting pneumatic actuator + manual emergency control

Ductile iron knife gate valve with double-acting pneumatic actuator + manual emergency control Technical sheet 3D
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

DOUBLE-ACTING PNEUMATIC ACTUATOR AVEC CMS

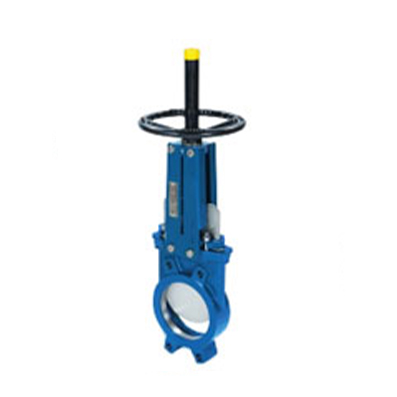

VG4400-00EA

Ductile iron rising-stem knife gate valve with handwheel – EPDM ACS

Ductile iron rising-stem knife gate valve with handwheel – EPDM ACS Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

EPDM ACS

Operating system

RISING STEM HANDWHEEL

VGA4430-00

Ductile iron rising-stem knife gate valve with handwheel – ASA 150

Ductile iron rising-stem knife gate valve with handwheel – ASA 150 Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN20/ASA150

End

BETWEEN FLANGES

Contact sealing

EPDM

Operating system

RISING STEM HANDWHEEL

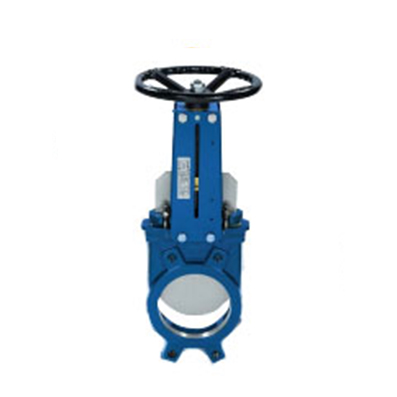

VG4400-001EA

Ductile iron non-rising stem knife gate valve with handwheel – EPDM ACS

Ductile iron non-rising stem knife gate valve with handwheel – EPDM ACS
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

EPDM ACS

Operating system

NON-RISING STEM HANDWHEEL

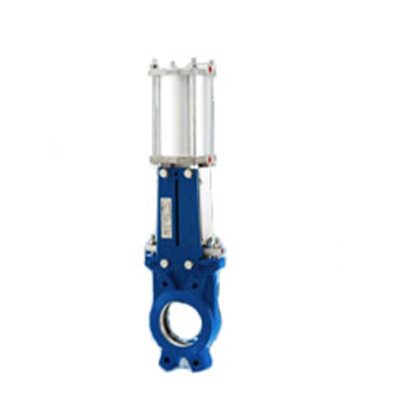

VG4400-03EA

Ductile iron knife gate valve with double-acting pneumatic actuator – EPDM ACS

Ductile iron knife gate valve with double-acting pneumatic actuator – EPDM ACS Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

EPDM ACS

Operating system

DOUBLE-ACTING PNEUMATIC ACTUATOR

VGA4430-03

Ductile iron knife gate valve with double-acting pneumatic actuator – ASA 150

Ductile iron knife gate valve with double-acting pneumatic actuator – ASA 150 Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN20/ASA150

End

BETWEEN FLANGES

Contact sealing

EPDM

Operating system

DOUBLE-ACTING PNEUMATIC ACTUATOR

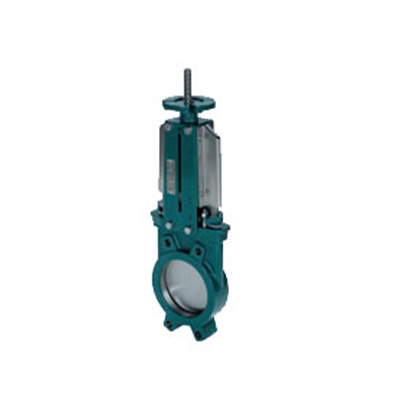

VG4400-004NI

Ductile iron rising-stem knife gate valve with ISO mounting plate for electric actuator

Ductile iron rising-stem knife gate valve with ISO mounting plate for electric actuator Technical sheet 3D
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

ISO MOUNTING PLATE

VG4400-08NI

Ductile iron knife gate valve rising-stem with gearbox actuator operating

Ductile iron knife gate valve rising-stem with gearbox actuator operating Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

ACTUATED GEARBOX OPERATOR

VG3400-07NI

Cast Iron knife gate valve with single-acting pneumatic actuator N.C*

Cast Iron knife gate valve with single-acting pneumatic actuator N.C* 3D
Body material

CAST IRON GG25/ENGJL-250

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

SINGLE-ACTING PNEUMATIC ACTUATOR

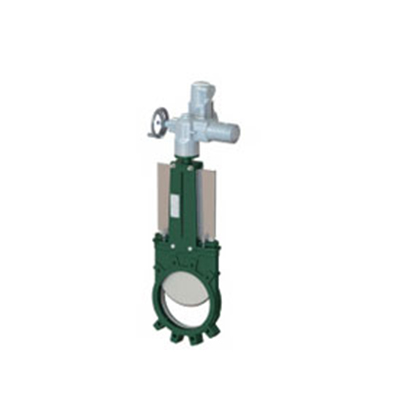

VG4400-U04NI

Ductile iron rising-stem knife gate valve with AUMA electric actuator – between flanges PN10

Ductile iron rising-stem knife gate valve with AUMA electric actuator – between flanges PN10 Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

PN10

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

AUMA ELECTRIC ACTUATOR

VGA4430-U04NI

Ductile iron rising-stem knife gate valve with AUMA electric actuator – ASA 150

Ductile iron rising-stem knife gate valve with AUMA electric actuator – ASA 150 Technical sheet
Body material

DUCTILE IRON GGG50/ENGJS-500-7

Gate material

STAINLESS STEEL 304/A182 F304/1.4301

PN (End)

ASA150

End

BETWEEN FLANGES

Contact sealing

NBR

Operating system

AUMA ELECTRIC ACTUATOR
