VPG – Genius DN40-300 (replacing VPE)

VPG – Genius DN40-300 (replacing VPE)

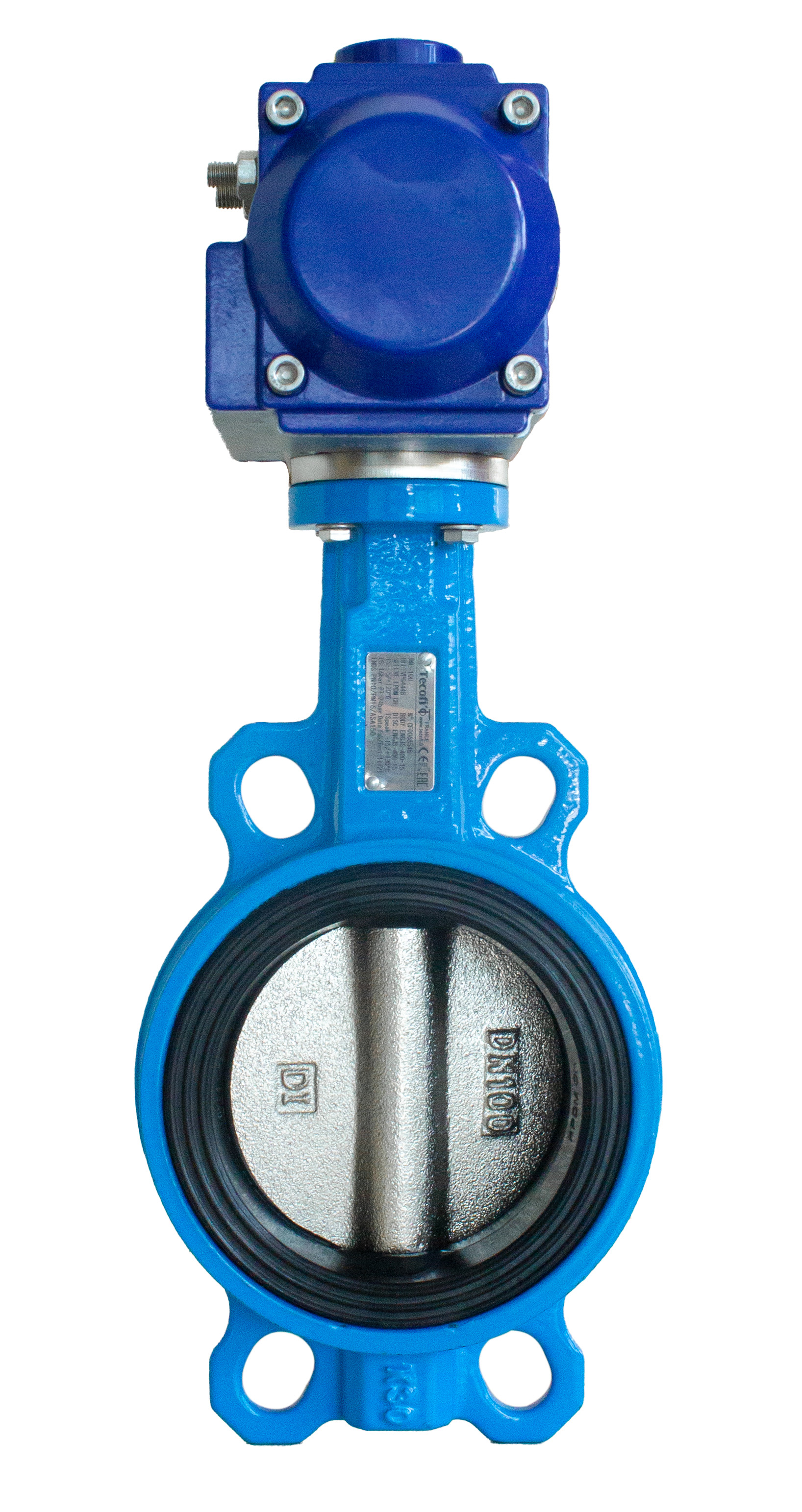

VPG4459-N07EP

Butterfly valve wafer PN25 – ductile iron body and stainless steel disc – HEAT EPDM

Butterfly valve wafer PN25 – ductile iron body and stainless steel disc – HEAT EPDM
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

STAINLESS STEEL A351 CF8M/1.4408

PN (End)

PN25

End

BETWEEN FLANGES

Contact sealing

HEAT EPDM

Operating system

PNEUMATIC ACTUATOR SE

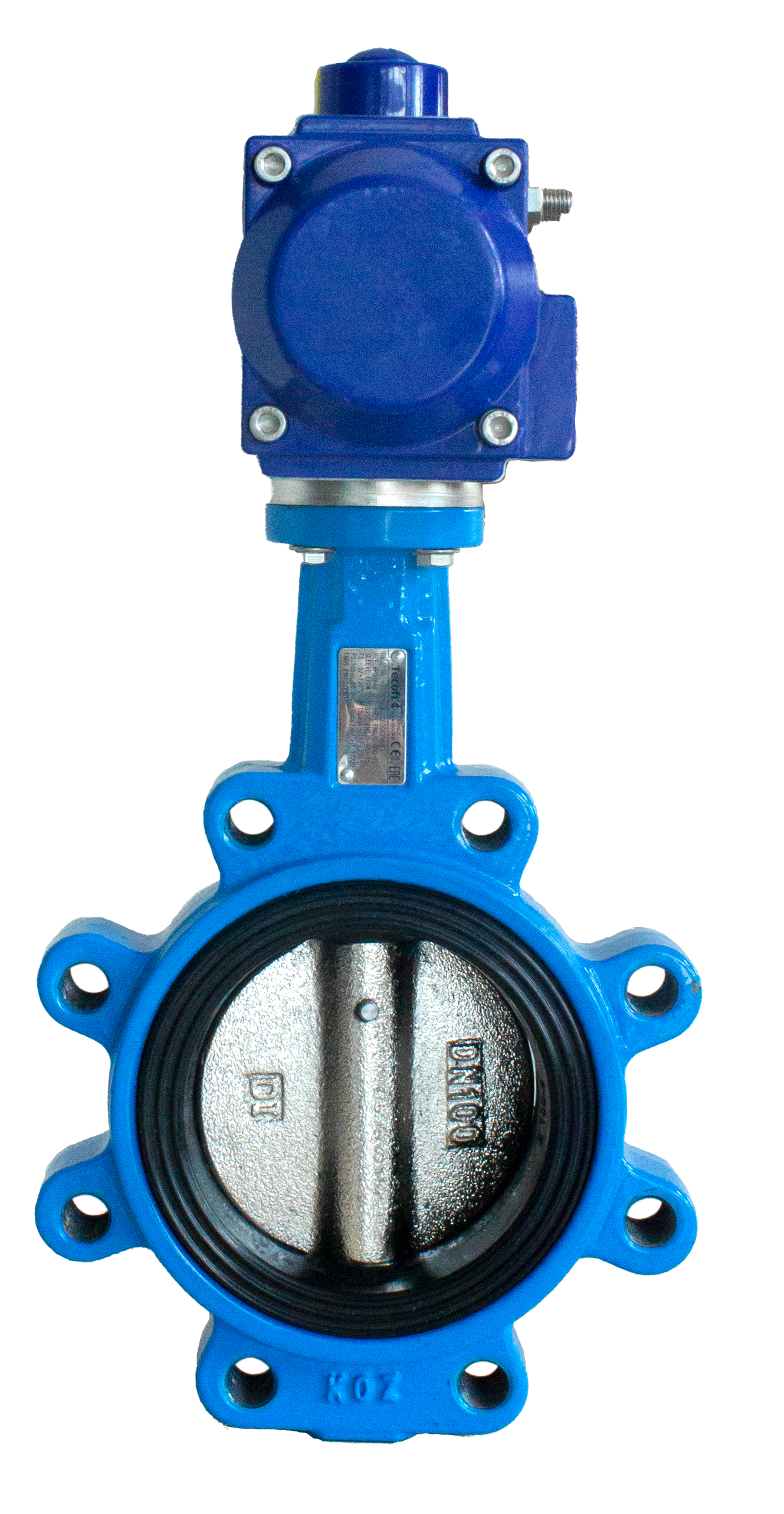

VPG4658-N07EP

Lug type Butterfly valve PN25- ductile iron body and disc – HEAT EPDM

Lug type Butterfly valve PN25- ductile iron body and disc – HEAT EPDM
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

DUCTILE IRON GGG40/ENGJS-400-15

PN (End)

PN25

End

LUG TYPE

Contact sealing

HEAT EPDM

Operating system

PNEUMATIC ACTUATOR SE

VPG4442-N07NI

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – NBR

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – NBR
Body Material

DUCTILE IRON EN-GJS-400-15 (GGG40)

Disc Material

ALUMINIUM BRONZE

Pn (End)

PN10/PN16/ASA150

End

BETWEEN FLANGES

Contact Sealing

NBR

Operating System

SIMPLE ACTING PNEUMATIC ACTUATOR

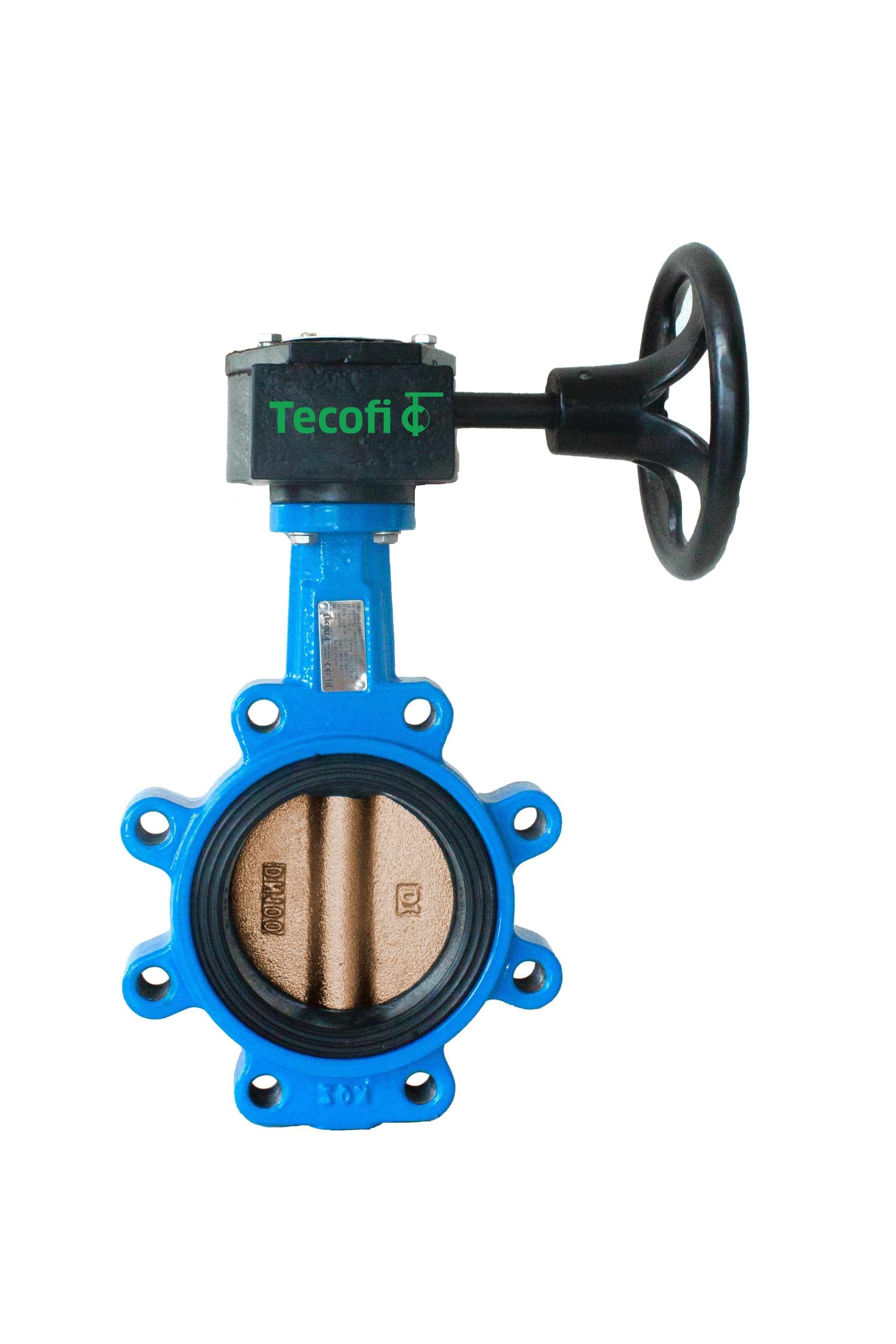

VPG4602-08NI

Lug type Butterfly valve PN10 – ductile iron body and aluminium bronze disc – NBR

Lug type Butterfly valve PN10 – ductile iron body and aluminium bronze disc – NBR
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

ALUMINIUM BRONZE

PN (End)

PN10

End

LUG TYPE

Contact sealing

NBR

Operating system

GEARBOX

VPG4642-08NI

Lug type Butterfly valve PN16 – ductile iron body and aluminium bronze disc – NBR

Lug type Butterfly valve PN16 – ductile iron body and aluminium bronze disc – NBR
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

ALUMINIUM BRONZE

PN (End)

PN10/16/ASA150

End

LUG TYPE

Contact sealing

NBR

Operating system

GEARBOX

VPG4442-N07

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM Technical sheet
Body Material

Ductile Iron EN-GJS-400-15

Disc Material

ALUMINIUM BRONZE

Pn (End)

PN10/PN16/ASA150

End

BETWEEN FLANCHES

Contact Sealing

HEAT EPDM

Operating System

Single-Acting Pneumatic Actuator

VPG4442-N03

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM Technical sheet
Body Material

DUCTILE IRON EN-GJS-400-15 (GGG40)

Disc Material

ALUMINIUM BRONZE

Pn (End)

PN10/PN16/ASA150

End

BETWEEN FLANGES

Contact Sealing

HEAT EPDM

Operating System

DOUBLE ACTING PNEUMATIC ACTUATOR

VPG4442-08

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM Technical sheet
Body Material

DUCTILE IRON GGG40/ENGJS-400-15

Disc Material

ALUMINIUM BRONZE

Pn (End)

PN10/PN16/ASA150

End

BETWEEN FLANGES

Contact Sealing

HEAT EPDM

Operating System

GEARBOX

VPG4442-02

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM

Butterfly valve wafer PN16 – ductile iron body and aluminium bronze disc – HEAT EPDM Technical sheet
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

ALUMINIUM BRONZE

PN (End)

PN10/16

End

BETWEEN FLANGES

Contact sealing

HEAT EPDM

Operating system

HANDLE

VPG4449-J34

Butterfly valve with threaded lugs PN10/16 – Ductile Iron body and Stainless Steel disc – EPDM ACS – TECOFI 230V electric actuator

Butterfly valve with threaded lugs PN10/16 – Ductile Iron body and Stainless Steel disc – EPDM ACS – TECOFI 230V electric actuator Technical sheet
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

INOX 316

PN (Connection)

PN10/16 DU DN40 AU DN150
PN10 DU DN200 AU DN300
PN16 DU DN200 AU DN300

Connection

LUG TYPE

Contact sealing

EPDM ACS

Operating system

TECOFI SINGLE-PHASE 230V ELECTRIC ACTUATOR

VPG4648-N07

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15 (GGG40)

Disc Material

Ductile Iron EN-GJS-400-15 (GGG40) nickel plated

Pn (End)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

Lug type

Conatct Sealing

HEAT EPDM

System Operating

Single-Acting Pneumatic Actuator

VPG4648-N03

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15 (GGG40)

Disc Material

Ductile Iron En-GSJ-400-15 (GGG40) nickel plated

Pn (End)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

Lug type

Contact Sealing

Heat EPDM

Operating System

Double acting Pneumatic Actuator

VPG4648-08

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc

Lug Type Butterfly Valve PN16 GS Ductile Iron Disc Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15 (GGG40)

Disc Material

Ductile Iron EN-GJS-400-15 (GGG40) nickel plated

Pn (End)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

Lug Type

Contact Sealing

Heat EPDM

Operating System

Gearbox

VPG4649-N07

Lug type butterfly valve PN16 Stainless Steel disc

Lug type butterfly valve PN16 Stainless Steel disc Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15 (GGG40)

Disc Material

Stainless Steel 316

Pn (End)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

Lug type

Contact Sealing

EPDM ACS

Operating System

Single-Acting Pneumatic Actuator

VPG4649-N03

Lug Type Butterfly valve PN16 Stainless Steel disc

Lug Type Butterfly valve PN16 Stainless Steel disc Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15

Disc Material

Stainless Steel 316

Pn (End)

PN10/16 up to DN150
PN 10 or PN16 DN200 to DN300

End

Lug type

Contact Sealing

EPDM ACS

Operating System

Double-acting Pneumatic Actuator

VPG4649-08

Lug type butterfly valve PN16 Stainless Steel

Lug type butterfly valve PN16 Stainless Steel Technical sheet 3D BIM .RFA File
Body Material

Ductile Iron EN-GJS-400-15 (GGG40)

Disc Material

Stainless Steel 316

pn (end)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

Lug type

Contact Sealing

EPDM ACS

Operating System

Gearbox

VPG4448-02

Butterfly valve wafer PN16 – ductile iron body and disc – EPDM

Butterfly valve wafer PN16 – ductile iron body and disc – EPDM Technical sheet 3D BIM .RFA File
Body material

CAST IRON GG25/ENGJL-250

Disc material

DUCTILE IRON GGG40/ENGJS-400-15

PN (End)

PN10/16/ASA150/JIS10K

End

BETWEEN FLANGES

Contact sealing

HEAT EPDM

Operating system

HANDLE

VPG4648-02

Butterfly valve lug PN16 – ductile iron body and disc – EPDM

Butterfly valve lug PN16 – ductile iron body and disc – EPDM Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

DUCTILE IRON GGG40/ENGJS-400-15

PN (End)

PN10/16 up to DN150
PN10 or PN16 DN200 to DN300

End

LUGGED

Contact sealing

HEAT EPDM

Operating system

HANDLE

VPG4449-02

Butterfly valve wafer PN16 – ductile iron body and stainless steel disc – EPDM

Butterfly valve wafer PN16 – ductile iron body and stainless steel disc – EPDM Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

STAINLESS STEEL A351 CF8M/1.4408

PN (End)

PN10/16/ASA150/JIS10K

End

BETWEEN FLANGES

Contact sealing

EPDM ACS

Operating system

HANDLE

VPG4649-02

Butterfly valve lug PN16 – ductile iron body and stainless steel disc – EPDM

Butterfly valve lug PN16 – ductile iron body and stainless steel disc – EPDM Technical sheet 3D BIM .RFA File
Body material

DUCTILE IRON GGG40/ENGJS-400-15

Disc material

STAINLESS STEEL A351 CF8M/1.4408

PN (End)

PN10/PN16 up to DN150
PN10 or PN16 DN200 to DN300

End

LUGGED

Contact sealing

EPDM ACS

Operating system

HANDLE
